ElementUI 整体页面布局

发布时间:2021-03-15 10:26:31编辑:admin阅读(3373)

    一、概述

    一般后台页面的顶部导航栏和左侧导航栏一般是固定的,我们可以布局成下面的样式




    二、整体项目布局

    因为我们的首页是个公共的组件,点击首页,会员管理,都不会变,所以我们可以放在一个单独文件夹里面。

    需要分别对头部,左侧区域,主区域拆分成不同的文件。

    创建项目

    创建一个全新的ElementUI 项目,请参考链接:

    https://www.cnblogs.com/xiao987334176/p/14187889.html



    在src目录下,创建views文件夹,在里面再创建Layout文件夹,最后创建index.vue

    最终src目录结构如下:

    ./
    ├── App.vue
    ├── assets
    │   └── logo.png
    ├── components
    │   └── HelloWorld.vue
    ├── main.js
    ├── router
    │   └── index.js
    └── views
        └── Layout
            └── index.vue



    修改views/Layout/index.vue,完整内容如下:

    <template>
      <div>
        <div class="header">头部</div>
        <div class="navbar">左侧区域</div>
        <div class="main">主区域</div>
      </div>
    </template>

    <style scoped>
      /* 头部样式 */
      .header {
        position: absolute;
        line-height: 50px;
        top: 0px;
        left: 0px;
        right: 0px;
        background-color: #2d3a4b;
      }

      /* 左侧样式 */
      .navbar {
        position: absolute;
        width: 200px;
        top: 50px;  /* 距离上面50像素 */
        left: 0px;
        bottom: 0px;
        overflow-y: auto; /* 当内容过多时y轴出现滚动条 */
        background-color: #545c64;
      }

      /* 主区域 */
      .main {
        position: absolute;
        top: 50px;
        left: 200px;
        bottom: 0px;
        right: 0px;  /* 距离右边0像素 */
        padding: 10px;
        overflow-y: auto; /* 当内容过多时y轴出现滚动条 */
        /* background-color: red; */
      }
    </style>




    修改router/index.js

    import Vue from 'vue'
    import Router from 'vue-router'
    import HelloWorld from '@/components/HelloWorld'
    import Layout from '@/views/Layout'  // 默认加载index.vue

    Vue.use(Router)

    export default new Router({
      mode: 'history',  //去掉url中的#
      routes: [
        {
          path: '/',
          name: 'layout',  // 路由名称
          component: Layout  // 组件对象
        }
      ]
    })



    修改App.vue,注释多余的代码

    <template>
      <div id="app">
    <!--    <img src="./assets/logo.png">-->
        <router-view/>
      </div>
    </template>

    <script>
    export default {
      name: 'App'
    }
    </script>

    <style>
    /*#app {*/
    /*  font-family: 'Avenir', Helvetica, Arial, sans-serif;*/
    /*  -webkit-font-smoothing: antialiased;*/
    /*  -moz-osx-font-smoothing: grayscale;*/
    /*  text-align: center;*/
    /*  color: #2c3e50;*/
    /*  margin-top: 60px;*/
    /*}*/
    </style>

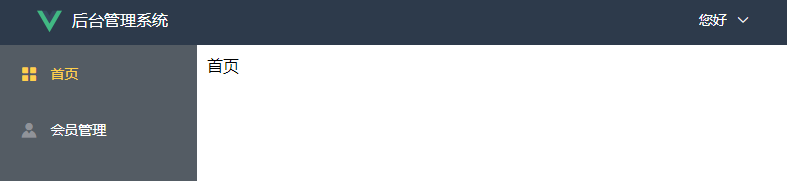

    运行vue项目,访问首页,效果如下:




    布局拆分

    上面已经实现了3个区域的布局,现在需要将3个区域拆分成不同的vue文件,方便后续的维护。

    在src/views/Layout目录下,创建文件夹components,并在此文件夹创建3个文件AppHeader.vue,Appmain.vue,Appnavbar.vue

    最终,src目录结构如下:

    ./
    ├── App.vue
    ├── assets
    │   └── logo.png
    ├── components
    │   └── HelloWorld.vue
    ├── main.js
    ├── router
    │   └── index.js
    └── views
        └── Layout
            ├── components
            │   ├── AppHeader.vue
            │   ├── Appmain.vue
            │   └── Appnavbar.vue
            └── index.vue



    views/Layout/components/AppHeader.vue

    <template>
      <div class="header">头部</div>
    </template>

    <script>
      export default {
        name: "AppHeader"
      }
    </script>

    <style scoped>

    </style>




    views/Layout/components/Appmain.vue

    <template>
      <div class="main">主区域</div>
    </template>

    <script>
        export default {
            name: "AppMain"
        }
    </script>

    <style scoped>

    </style>




    views/Layout/components/Appnavbar.vue

    <template>
      <div class="navbar">左侧区域</div>
    </template>

    <script>
      export default {
        name: "AppNavbar"
      }
    </script>

    <style scoped>

    </style>




    views/Layout/index.vue

    <template>
      <div>
        <app-header></app-header>
        <app-navbar></app-navbar>
        <app-main></app-main>
      </div>
    </template>

    <script>
      import AppHeader from "./components/AppHeader"
      import AppNavbar from "./components/AppNavbar"
      import AppMain from "./components/AppMain"

      // 导入子组件,缩写格式 AppHeader: AppHeader
      export default {
        components: { AppHeader, AppNavbar, AppMain }  // 有s
      };

    </script>

    <style scoped>
      /* 头部样式 */
      .header {
        position: absolute;
        line-height: 50px;
        top: 0px;
        left: 0px;
        right: 0px;
        background-color: #2d3a4b;
      }

      /* 左侧样式 */
      .navbar {
        position: absolute;
        width: 200px;
        top: 50px;  /* 距离上面50像素 */
        left: 0px;
        bottom: 0px;
        overflow-y: auto; /* 当内容过多时y轴出现滚动条 */
        background-color: #545c64;
      }

      /* 主区域 */
      .main {
        position: absolute;
        top: 50px;
        left: 200px;
        bottom: 0px;
        right: 0px;  /* 距离右边0像素 */
        padding: 10px;
        overflow-y: auto; /* 当内容过多时y轴出现滚动条 */
        /* background-color: red; */
      }
    </style>




    刷新我们的页面,页面还是之前的样式,则我们的抽取没有问题





    本文参考链接:

    https://www.cnblogs.com/zouzou-busy/p/13080665.html
