使用Helm部署微服务应用PiggyMetrics

发布时间:2020-05-12 15:29:23编辑:admin阅读(2789)

    一、概述

    本文介绍如何将一个较复杂的应用部署到Kubernetes容器服务上,下面将从基础设施和应用部署的不同组合方式,来部署一个复杂的SpringCloud应用。

    PiggyMetrics

    PiggyMetrics是github上的一个SpringCloud应用项目,Star数目3400多。这个项目主体采用Docker Compose部署,包含了完整的源代码以及构建好的容器镜像,是非常不错的SpringCloud容器化示例。

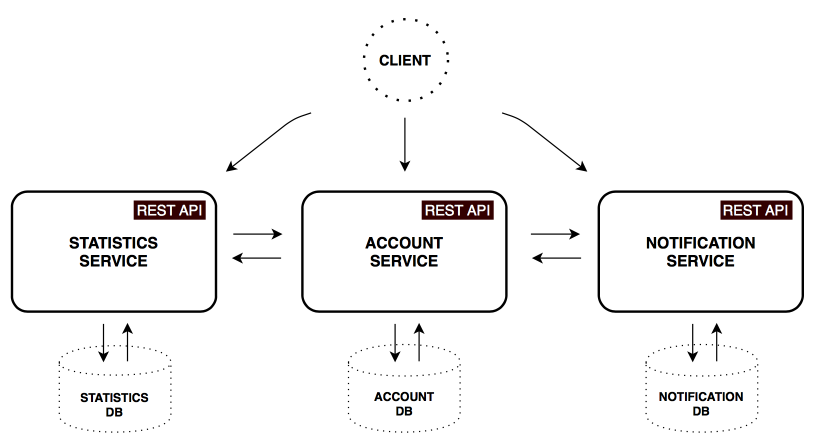

    这个项目包含了3个业务微服务,分别是统计服务(Statistics Service)、账户服务(Account Service)和通知服务(Notification Service)。每个服务分别对应一个独立的MongoDB。微服务架构图示(采用作者原图)如下:

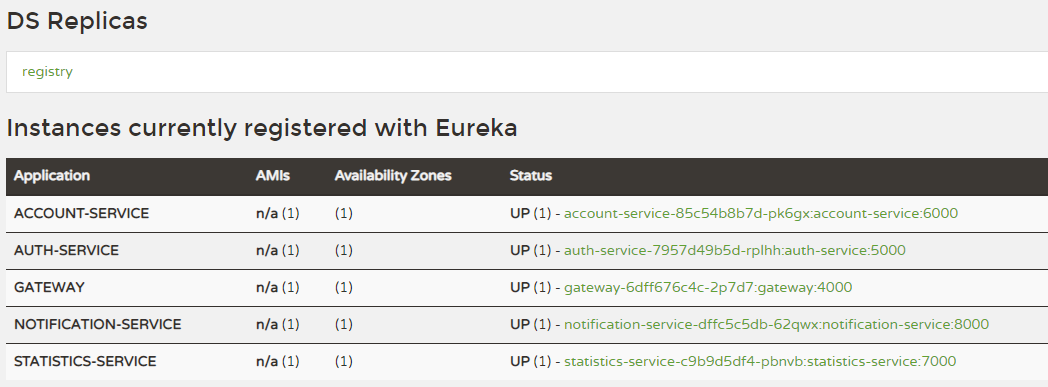

    SpringCloud基础组件负责服务注册和registry服务(Eureka服务注册),config服务(配置管理),gateway(API网关,同时也是JavaScript Web界面),monitor服务(Hystrix Dashboard/Turbine)等。



    二、用helm一键部署所有服务

    修改docker-compose

    1. 修改PiggyMetrics应用程序的Docker编写文件
    切换配置文件版本。
    PiggyMetrics的部署采用docker-compose YAML部署到单机,如果要部署到Kubernetes环境中 ,需要转换成为Kubernetes deployment YAML。

    说明 PiggyMetrics中的docker compose模版为2.1,kompose不支持该版本,所以需要把compose文件改为版本2。

    2. 在docker-compose.yml文件中。

    去除kompose不支持的语法。

    depends_on:
          config:
            condition: service_healthy  # 不支持 condition

    增加Kubernetes server type annotation。

    depends_on:
      - config
    labels:
      kompose.service.type: loadbalancer

    docker-compose.dev.yml文件中,将PiggyMetrics应用程序使用的四个MongoDB数据库的外部端口更改为27017。

    说明 PiggyMetrics应用包含四个MongoDB数据库,分别由 auth-mongodb, 、account-mongodb、statistics-mongodb和 notification-mongodb这四个字段定义。

    完整的YAML文件示例如下:

    version: '2'
    services:
      rabbitmq:
        image: rabbitmq:3-management
        restart: always
        labels:
          kompose.service.type: nodeport
        ports:
          - 5672
          - 15672:15672
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      config:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
        image: sqshq/piggymetrics-config
        restart: always
        ports:
          - 8888
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      registry:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
        image: sqshq/piggymetrics-registry
        restart: always
        depends_on:
          - config
        labels:
          kompose.service.type: loadbalancer
        ports:
          - 8761:8761
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      gateway:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
        image: sqshq/piggymetrics-gateway
        restart: always
        depends_on:
          - config
        labels:
          kompose.service.type: loadbalancer
        ports:
          - 4000:4000
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      auth-service:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
          NOTIFICATION_SERVICE_PASSWORD: $NOTIFICATION_SERVICE_PASSWORD
          STATISTICS_SERVICE_PASSWORD: $STATISTICS_SERVICE_PASSWORD
          ACCOUNT_SERVICE_PASSWORD: $ACCOUNT_SERVICE_PASSWORD
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        image: sqshq/piggymetrics-auth-service
        restart: always
        ports:
          - 5000
        depends_on:
          - config
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      auth-mongodb:
        environment:
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        image: sqshq/piggymetrics-mongodb
        restart: always
        ports:
          - 27017
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      account-service:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
          ACCOUNT_SERVICE_PASSWORD: $ACCOUNT_SERVICE_PASSWORD
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        image: sqshq/piggymetrics-account-service
        restart: always
        ports:
          - 6000
        depends_on:
          - config
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      account-mongodb:
        environment:
          INIT_DUMP: account-service-dump.js
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        image: sqshq/piggymetrics-mongodb
        restart: always
        ports:
          - 27017
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      statistics-service:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
          MONGODB_PASSWORD: $MONGODB_PASSWORD
          STATISTICS_SERVICE_PASSWORD: $STATISTICS_SERVICE_PASSWORD
        image: sqshq/piggymetrics-statistics-service
        restart: always
        ports:
          - 8888
        depends_on:
          - config
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      statistics-mongodb:
        environment:
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        image: sqshq/piggymetrics-mongodb
        restart: always
        ports:
          - 27017
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      notification-service:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
          MONGODB_PASSWORD: $MONGODB_PASSWORD
          NOTIFICATION_SERVICE_PASSWORD: $NOTIFICATION_SERVICE_PASSWORD
        image: sqshq/piggymetrics-notification-service
        restart: always
        ports:
          - 8000
        depends_on:
          - config
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      notification-mongodb:
        image: sqshq/piggymetrics-mongodb
        restart: always
        environment:
          MONGODB_PASSWORD: $MONGODB_PASSWORD
        ports:
          - 27017
        logging:
          options:
            max-size: "10m"
            max-file: "10"

      monitoring:
        environment:
          CONFIG_SERVICE_PASSWORD: $CONFIG_SERVICE_PASSWORD
        image: sqshq/piggymetrics-monitoring
        restart: always
        depends_on:
          - config
        labels:
          kompose.service.type: loadbalancer
        ports:
          - 9000:8080
          - 8989:8989
        logging:
          options:
            max-size: "10m"
            max-file: "10"
    ---

    使用Kompose生成Kubernetes配置文件

    2. 使用Kompose生成Kubernetes配置文件来部署PiggyMetrics应用。

    设定PiggyMetrics部署所需的环境变量。

    export NOTIFICATION_SERVICE_PASSWORD=passw0rd
    export CONFIG_SERVICE_PASSWORD=passw0rd
    export STATISTICS_SERVICE_PASSWORD=passw0rd
    export ACCOUNT_SERVICE_PASSWORD=passw0rd
    export MONGODB_PASSWORD=passw0rd

    运行以下命令将compose文件转换为Kubernetes配置文件。

    kompose工具可以一键将compose文件转换为Kubernetes配置文件。

    安装kompose

    curl -L https://github.com/kubernetes/kompose/releases/download/v1.21.0/kompose-linux-amd64 -o kompose
    chmod +x kompose
    sudo mv ./kompose /usr/local/bin/kompose

    转换配置文件

    kompose convert -f docker-compose.yml -o piggymetrics -c

    注意:原文给的还指定了docker-compose.dev.yml,执行会报错。提示docker-compose版本号不一致。

    FATA All Docker Compose files must be of the same version



    即使将2个yaml文件版本号改为一致,在后面执行helm install 命令时,会报错:

    Error: release piggy failed: Service "config" is invalid: spec.ports[1]: Duplicate value: core.ServicePort{Name:"", Protocol:"TCP", AppProtocol:(*string)(nil), Port:8888, TargetPort:intstr.IntOrString{Type:0, IntVal:0, StrVal:""}, NodePort:0}

    执行成功后,会生成文件夹piggymetrics,目录结构如下:

    ./
    ├── Chart.yaml
    ├── README.md
    └── templates
        ├── account-mongodb-deployment.yaml
        ├── account-mongodb-service.yaml
        ├── account-service-deployment.yaml
        ├── account-service-service.yaml
        ├── auth-mongodb-deployment.yaml
        ├── auth-mongodb-service.yaml
        ├── auth-service-deployment.yaml
        ├── auth-service-service.yaml
        ├── config-deployment.yaml
        ├── config-service.yaml
        ├── gateway-deployment.yaml
        ├── gateway-service.yaml
        ├── monitoring-deployment.yaml
        ├── monitoring-service.yaml
        ├── notification-mongodb-deployment.yaml
        ├── notification-mongodb-service.yaml
        ├── notification-service-deployment.yaml
        ├── notification-service-service.yaml
        ├── rabbitmq-deployment.yaml
        ├── rabbitmq-service.yaml
        ├── registry-deployment.yaml
        ├── registry-service.yaml
        ├── statistics-mongodb-deployment.yaml
        ├── statistics-mongodb-service.yaml
        ├── statistics-service-deployment.yaml
        └── statistics-service-service.yaml



    运行helm install命令

    运行helm install命令,在Kubernetes集群中部署PiggyMetrics应用。

    例如,您可以运行以下命令,在命名空间pm中部署名为piggy的应用。

    helm install --namespace pm --name piggy piggymetrics/

    输出如下:

    NAME:   piggy
    LAST DEPLOYED: Sun Apr 26 13:30:46 2020
    NAMESPACE: pm
    STATUS: DEPLOYED

    RESOURCES:
    ==> v1/Deployment
    NAME                  READY  UP-TO-DATE  AVAILABLE  AGE
    account-mongodb       0/1    0           0          0s
    account-service       0/1    0           0          0s
    auth-mongodb          0/1    0           0          0s
    auth-service          0/1    0           0          0s
    config                0/1    0           0          0s
    gateway               0/1    0           0          0s
    monitoring            0/1    0           0          0s
    notification-mongodb  0/1    0           0          0s
    notification-service  0/1    0           0          0s
    rabbitmq              0/1    0           0          0s
    registry              0/1    0           0          0s
    statistics-mongodb    0/1    0           0          0s
    statistics-service    0/1    0           0          0s

    ==> v1/Pod(related)
    NAME                                 READY  STATUS             RESTARTS  AGE
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s
    statistics-mongodb-655997cb95-jlfrf  0/1    ContainerCreating  0         1s

    ==> v1/Service
    NAME                  TYPE          CLUSTER-IP    EXTERNAL-IP  PORT(S)                         AGE
    account-mongodb       ClusterIP     10.1.186.96   <none>       27017/TCP                       0s
    account-service       ClusterIP     10.1.79.137   <none>       6000/TCP                        0s
    auth-mongodb          ClusterIP     10.1.37.220   <none>       27017/TCP                       0s
    auth-service          ClusterIP     10.1.241.143  <none>       5000/TCP                        0s
    config                ClusterIP     10.1.104.247  <none>       8888/TCP                        0s
    gateway               LoadBalancer  10.1.186.147  <pending>    4000:30023/TCP                  0s
    monitoring            LoadBalancer  10.1.180.30   <pending>    9000:32101/TCP,8989:30052/TCP   0s
    notification-mongodb  ClusterIP     10.1.7.3      <none>       27017/TCP                       0s
    notification-service  ClusterIP     10.1.109.117  <none>       8000/TCP                        0s
    rabbitmq              NodePort      10.1.245.70   <none>       5672:31239/TCP,15672:31437/TCP  0s
    registry              LoadBalancer  10.1.250.187  <pending>    8761:31604/TCP                  0s
    statistics-mongodb    ClusterIP     10.1.81.216   <none>       27017/TCP                       0s
    statistics-service    ClusterIP     10.1.133.191  <none>       8888/TCP                        0s



    查看pod

    # kubectl get pods -n pm
    NAME                                    READY   STATUS    RESTARTS   AGE
    account-mongodb-7bc77558fb-s8bvk        1/1     Running   0          6m
    account-service-85c54b8b7d-cf6mt        1/1     Running   1          6m
    auth-mongodb-5655cdc9b5-n5k8l           1/1     Running   0          6m
    auth-service-7957d49b5d-vrsxc           1/1     Running   1          6m
    config-5ffdb754c6-lxmxs                 1/1     Running   0          6m
    gateway-6dff676c4c-cvstn                1/1     Running   2          6m
    monitoring-857c68fc4f-brc7n             1/1     Running   1          6m
    notification-mongodb-74fb57b5b7-298sd   1/1     Running   0          5m59s
    notification-service-dffc5c5db-rn2pm    1/1     Running   1          5m59s
    rabbitmq-dbff5d4f7-2w2zk                1/1     Running   0          6m
    registry-695b4f945b-2kr7k               1/1     Running   1          5m59s
    statistics-mongodb-655997cb95-jlfrf     1/1     Running   0          6m
    statistics-service-c9b9d5df4-cnz29      1/1     Running   1          6m

    注意:PiggyMetrics的所有pod都运行在pm这个命名空间下。



    查看svc

    # kubectl get svc -n pm
    NAME                   TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                          AGE
    account-mongodb        ClusterIP      10.1.186.96    <none>        27017/TCP                        6m45s
    account-service        ClusterIP      10.1.79.137    <none>        6000/TCP                         6m45s
    auth-mongodb           ClusterIP      10.1.37.220    <none>        27017/TCP                        6m45s
    auth-service           ClusterIP      10.1.241.143   <none>        5000/TCP                         6m45s
    config                 ClusterIP      10.1.104.247   <none>        8888/TCP                         6m45s
    gateway                LoadBalancer   10.1.186.147   <pending>     4000:30023/TCP                   6m45s
    monitoring             LoadBalancer   10.1.180.30    <pending>     9000:32101/TCP,8989:30052/TCP    6m45s
    notification-mongodb   ClusterIP      10.1.7.3       <none>        27017/TCP                        6m45s
    notification-service   ClusterIP      10.1.109.117   <none>        8000/TCP                         6m45s
    rabbitmq               NodePort       10.1.245.70    <none>        5672:31239/TCP,15672:31437/TCP   6m45s
    registry               LoadBalancer   10.1.250.187   <pending>     8761:31604/TCP                   6m45s
    statistics-mongodb     ClusterIP      10.1.81.216    <none>        27017/TCP                        6m45s
    statistics-service     ClusterIP      10.1.133.191   <none>        8888/TCP                         6m45s

    这里面展示的NAME名称,就是SpringCloud各个组件的通讯地址。解析出的地址,就是cluster ip。



    查看eureka

    http://192.168.128.130:2173/

    注意:将上面的ip改为master或者node节点ip



    效果如下:








    访问后台页面

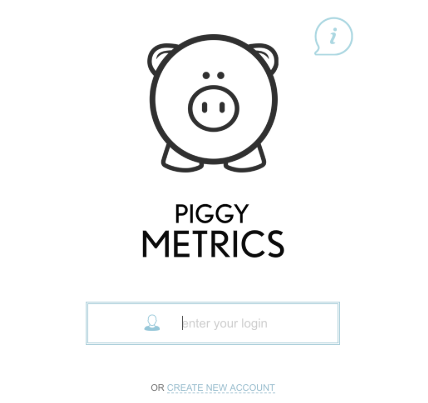

    http://192.168.128.130:30023/



    效果如下:

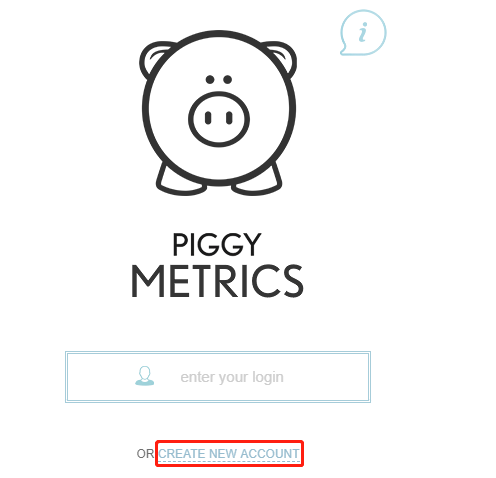

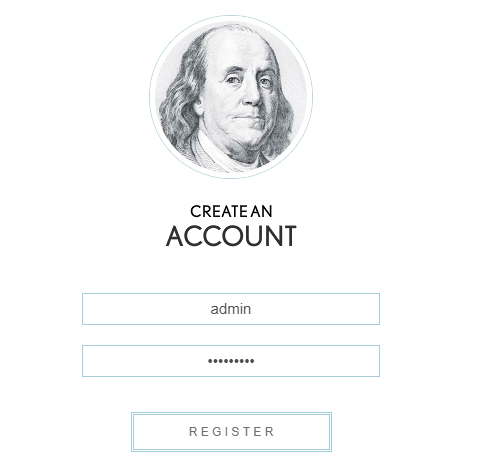

     由于默认的用户名和密码不知道,这里可以创建一个。注意:密码必须8位以上,符合密码复杂性要求!

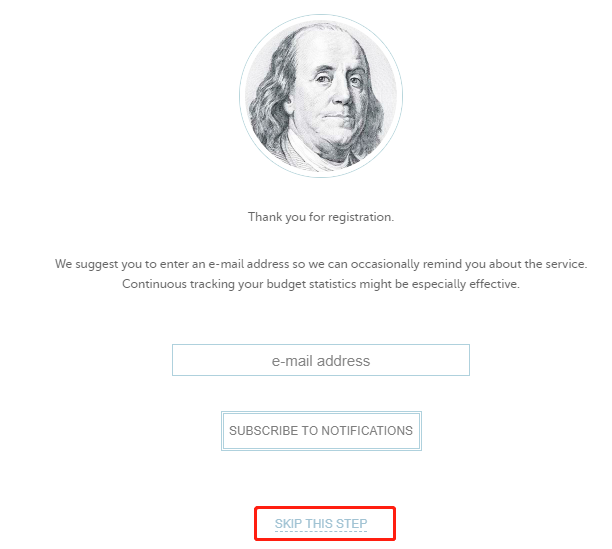

    出现一段提示,英文翻译如下:

    我们建议您输入一个电子邮件地址,以便我们偶尔提醒您有关服务的信息。持续跟踪你的预算统计数据可能特别有效。

    这里我选择不输入邮箱,点击跳过

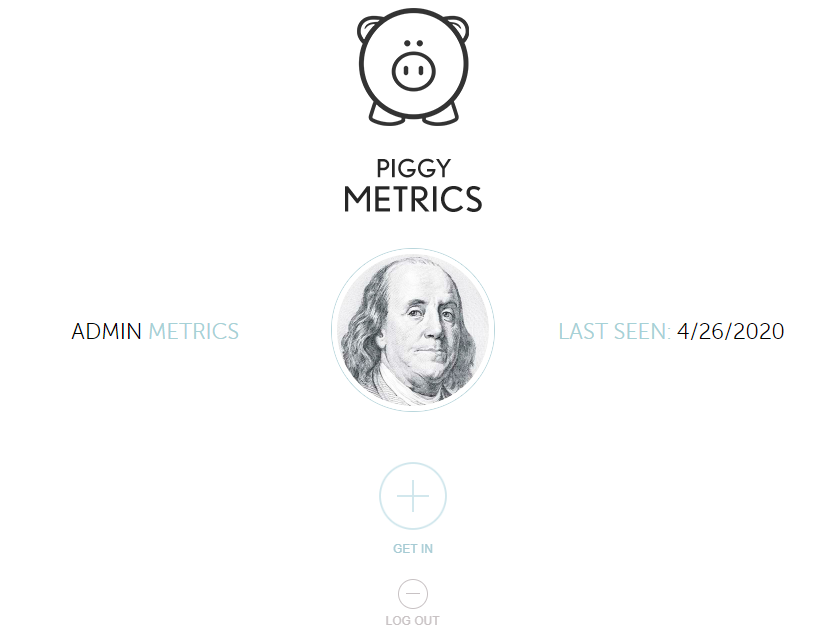

     最后就进入首页了










    本文参考链接:

    https://www.alibabacloud.com/help/zh/doc-detail/85935.htm


关键字
