1. Enable secure Telnet access to a router user interface, and consider using Secure Shell (SSH) instead of Telnet.
2. Enable SNMP security, particularly adding SNMPv3 support.
3. Turn off all unnecessary services on the router platform ( AutoSecure ).
4. Turn on logging to provide an audit trail.
5. Enable routing protocol authentication.
6. Enable the CEF forwarding path to avoid using flow-based paths like fast switching.

7. Using RPF Checks

example:

R1(config)# ip cef
R1(config)# int s0/0
R1(config-if)# ip verify unicast source reachable-via rx allow-default

8. Using ACL to prevent TCP SYN Flood from outside

example:

ip access-list extended prevent-syn
   permit tcp any 10.0.0.0 0.255.255.255 established
   deny tcp any 1.0.0.0 0.255.255.255
   permit (whatever)
!
interface s0/0  # Internet faced port
   ip access-group prevent-syn in

Notes: The above ACL works well when clients outside a network are not allowed to make TCP connections into the network. However, in cases where some inbound TCP connections are allowed, this ACL cannot be used. Another Cisco IOS feature, called TCP intercept, provides an alternative that  allows TCP connections into the network, but monitors those TCP connections for TCP SYN attacks.

example:

ip access-list extended match-tcp-from-internet
   permit tcp any 10.0.0.0 0.255.255.255

ip tcp intercept-list match-tcp-from-internet
ip tcp intercept mode watch
ip tcp intercept watch-timeout 20

9.Cisco IOS Firewall CBAC

example:

ip inspect name CLASSIC_FW icmp timeout 10
ip inspect name CLASSIC_FW tcp timeout 30
ip inspect name CLASSIC_FW udp timeout 30
!
ip access-list extended IOS_FW
   deny ip any any
!
interface Serial0/0  #Internet faced interface
   ip address 192.168.1.3 255.255.255.0
   ip access-group IOS_FW in
   ip inspect CLASSIC_FW out
!

10. Cisco IOS Zone-Based Firewall

example:

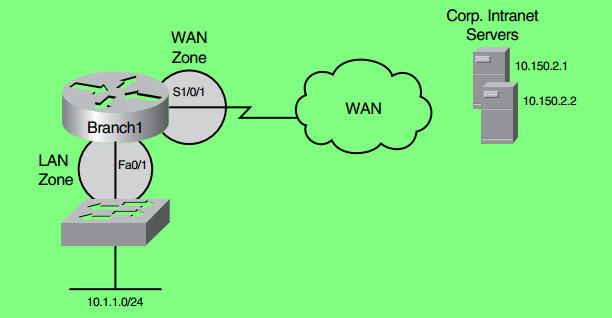

In this example, the network administrators have decided to apply the following policies to traffic from the LAN zone going through the WAN zone:
■ Only traffic from the LAN subnet is allowed.
■ HTTP traffic to corporate web-based intranet servers is allowed.
■ All other HTTP traffic is allowed but policed to 1 Mbps.
■ ICMP is blocked.
■ For all other traffic, the TCP and UDP timeouts must be lowered to 300 seconds.

Follow these steps to configure ZFW:


Step 1: Decide the zones you will need, and create them on the router.

Branch1(config)# zone security LAN
Branch1(config-sec-zone)# description LAN zone
!
Branch1(config)# zone security WAN
Branch1(config-sec-zone)# description WAN zone


Step 2: Decide how traffic should travel between the zones, and create zone-pairs on the router.

Branch1(config)# zone-pair security Internal source LAN destination WAN
Branch1(config)# zone-pair security External source WAN destination LAN


Step 3: Create class maps to identify the inter-zone traffic that must be inspected by the firewall.

Branch1(config)# ip access-list extended LAN-Subnet
Branch1(config-ext-nacl)# permit ip 10.1.1.0 0.0.0.255 any
!
Branch1(config-ext-nacl)# ip access-list extended Web_Servers
Branch1(config-ext-nacl)# permit tcp 10.1.1.0 0.0.0.255 host 10.150.2.1
Branch1(config-ext-nacl)# permit tcp 10.1.1.0 0.0.0.255 host 10.150.2.2
!
Branch1(config-ext-nacl)# class-map type inspect match-all Corp_Servers
Branch1(config-cmap)# match access-group name Web_Servers
Branch1(config-cmap)# match protocol http
!
Branch1(config-cmap)# class-map type inspect Other_HTTP
Branch1(config-cmap)# match protocol http
Branch1(config-cmap)# match access-group name LAN_Subnet
!
Branch1(config-cmap)# class-map type inspect ICMP
Branch1(config-cmap)# match protocol icmp
!
Branch1(config-cmap)# class-map type inspect Other_Traffic
Branch1(config-cmap)# match access-group name LAN_Subnet

Branch1(config)# parameter-map type inspect Timeouts
Branch1(config-profile)# tcp idle-time 300
Branch1(config-profile)# udp idle-time 300


Step 4: Assign policies to the traffic by creating policy maps and associating class maps with them.

Branch1(config-profile)# policy-map type inspect LAN2WAN
Branch1(config-pmap)# class type inspect Corp_Servers
Branch1(config-pmap-c)# inspect
!
Branch1(config-pmap-c)# class type inspect Other_HTTP
Branch1(config-pmap-c)# inspect
Branch1(config-pmap-c)# police rate 1000000 burst 8000
!
Branch1(config-pmap-c)# class type inspect ICMP
Branch1(config-pmap-c)# drop
!
Branch1(config-pmap-c)# class type inspect Other_Traffic
Branch1(config-pmap-c)# inspect Timeouts


Step 5: Assign the policy maps to the appropriate zone-pair.

Branch1(config)# zone-pair security Internal source LAN destination WAN
Branch1(config-sec-zone-pair)# service-policy type inspect LAN2WAN


Step 6: Assign interfaces to zones. An interface may be assigned to only one security zone.

Branch1(config)# interface fa 0/0
Branch1(config-if)# zone-member security LAN
!
Branch1(config-if)# interface s0/0/0
Branch1(config-if)# zone-member security WAN
