万能的python-画图

发布时间：2019-09-12 07:58:26编辑：auto阅读（2607）

我们可以试用可视化包——Pyechart。

Echarts是百度开源的一个数据可视化JS库，主要用于数据可视化。

pyecharts是一个用于生成Echarts图标的类库。实际就是Echarts与Python的对接。

安装

pyecharts兼容Python2和Python3。执行代码：

pip install pyecharts(快捷键Windows+R——输入cmd)

初级图表

1.柱状图/条形图

[python] view plain copy

1. from pyecharts import Bar

[python] view plain copy

1. attr=["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","袜子"]
2. v1=[5,20,36,10,75,90]
3. v2=[10,25,8,60,20,80]
4. bar=Bar("各商家产品销售情况")
5. bar.add("商家A",attr,v1,is_stack=True)
6. bar.add("商家B",attr,v2,is_stack=True)
7. bar#bar.render()




2.饼图

[python] view plain copy

1. from pyecharts import Pie
2. attr=["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","鞋子"]
3. v1=[11,12,13,10,10,10]
4. pie=Pie("各产品销售情况")
5. pie.add("",attr,v1,is_label_show=True)
6. pie        #pie.render()







3.圆环图

[python] view plain copy

1. from pyecharts import Pie
2. attr=["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","鞋子"]
3. v1=[11,12,13,10,10,10]
4. pie=Pie("饼图—圆环图示例",title_pos="center")
5. pie.add("",attr,v1,radius=[40,75],label_text_color=None,
6.        is_label_show=True,legend_orient="vertical",
7.        legend_pos="left")
8. pie




4.散点图

[python] view plain copy

1. from pyecharts import Scatter
2. v1=[10,20,30,40,50,60]
3. v2=[10,20,30,40,50,60]
4. scatter=Scatter("散点图示例")
5. scatter.add("A",v1,v2)
6. scatter.add("B",v1[::-1],v2)
7. scatter




5.仪表盘

[python] view plain copy

1. from pyecharts import Gauge
2. gauge=Gauge("业务指标完成率—仪表盘")
3. gauge.add("业务指标","完成率",66.66)
4. gauge




6.热力图

[python] view plain copy

1. import random
2. from pyecharts import HeatMap
3. x_axis=[
4.     "12a","1a","2a","3a","4a","5a","6a","7a","8a","9a","10a","11a",
5.     "12p","1p","2p","3p","4p","5p","6p","7p","8p","9p","10p","11p",]
6. y_axis=[
7.     "Saturday","Friday","Thursday","Wednesday","Tuesday","Monday","Sunday"]
8. data=[[i,j,random.randint(0,50)] for i in range(24) for j in range(7)]
9. heatmap=HeatMap()
10. heatmap.add("热力图直角坐标系",x_axis,y_axis,data,is_visualmap=True,
11.            visual_text_color="#000",visual_orient="horizontal")
12. heatmap



高级图表

1.漏斗图

[python] view plain copy

1. from pyecharts import Funnel
2. attr=["潜在","接触","意向","明确","投入","谈判","成交"]
3. value=[140,120,100,80,60,40,20]
4. funnel=Funnel("销售管理分析漏斗图")
5. funnel.add("商品",attr,value,is_label_show=True,
6.           label_pos="inside",label_text_color="#fff")
7. funnel

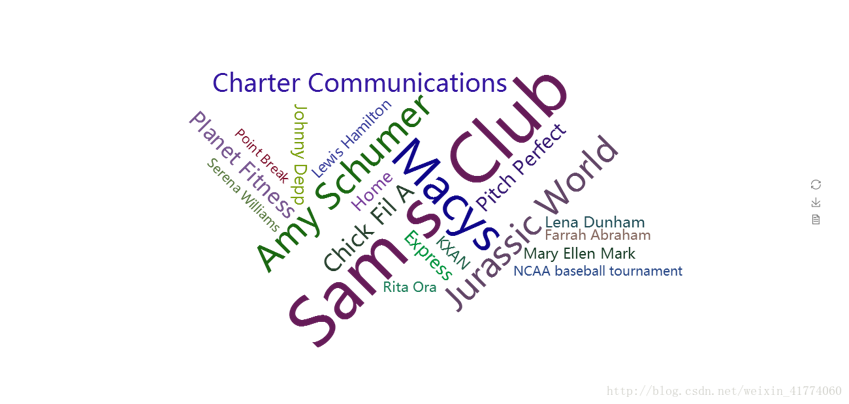

2.词云图

[python] view plain copy

1. from pyecharts import WordCloud
2. name=[
3.     "Sam s  Club","Macys","Amy Schumer","Jurassic World","Charter Communications",
4.     "Chick Fil A","Planet Fitness","Pitch Perfect","Express","Home","Johnny Depp",
5.     "Lena Dunham","Lewis Hamilton","KXAN","Mary Ellen Mark","Farrah Abraham",
6.     "Rita Ora","Serena Williams","NCAA baseball tournament","Point Break"
7. ]
8. value=[
9.     10000,6181,4386,4055,2467,2244,1898,1484,1112,
10.     965,847,582,555,550,462,366,360,282,273,265]
11. wordcloud=WordCloud(width=1300,height=620)
12. wordcloud.add("",name,value,word_size_range=[20,100])
13. wordcloud

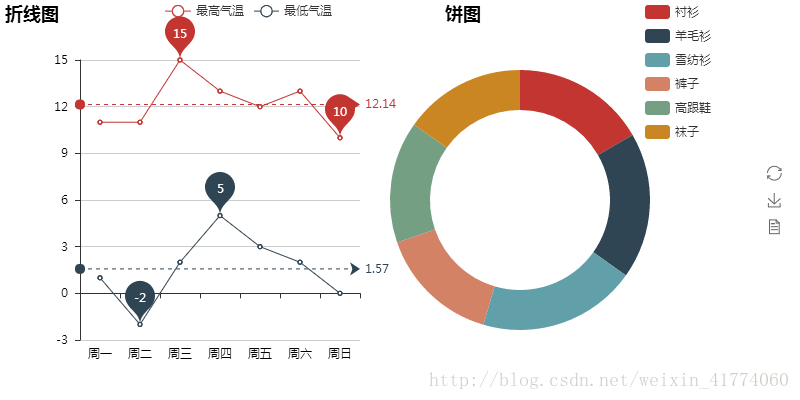

3.组合图

[python] view plain copy

1. from pyecharts import Line,Pie,Grid
2. line=Line("折线图",width=1200)
3. attr=["周一","周二","周三","周四","周五","周六","周日"]
4. line.add("最高气温",attr,[11,11,15,13,12,13,10],
5.         mark_point=["max","min"],mark_line=["average"])
6. line.add("最低气温",attr,[1,-2,2,5,3,2,0],
7.         mark_point=["max","min"],mark_line=["average"],
8.         legend_pos="20%")
9. attr=["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","袜子"]
10. v1=[11,12,13,10,10,10]
11. pie=Pie("饼图",title_pos="55%")
12. pie.add("",attr,v1,radius=[45,65],center=[65,50],
13.        legend_pos="80%",legend_orient="vertical")
14. grid=Grid()
15. grid.add(line,grid_right="55%")
16. grid.add(pie,grid_left="60%")
17. grid
