H3C基本配置

发布时间：2019-08-25 09:33:22编辑：auto阅读（1636）

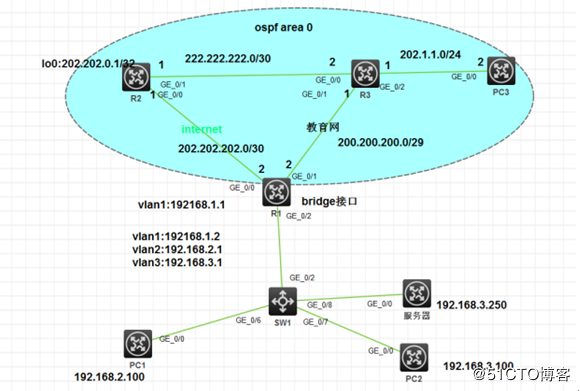

一、基本配置
pc1配置
<h3c>system-view
[h3c]sysname pc1
[h3c]int g0/0
[pc1-GigabitEthernet0/0]ip add 192.168.2.100 255.255.255.0
[pc1-GigabitEthernet0/0]undosh
[pc1-GigabitEthernet0/0]quit
[pc1]ip route-static 0.0.0.0 0.0.0.0 192.168.2.1
[pc1]displayip routing-table
pc2配置
<h3c>system-view
[h3c]sysname pc2
[pc2]int g0/0
[pc2-GigabitEthernet0/0]ip add 192.168.3.100 255.255.255.0
[pc2-GigabitEthernet0/0]undosh
[pc2-GigabitEthernet0/0]quit
[pc2]ip route-static 0.0.0.0 0.0.0.0 192.168.3.1
[pc2]displayip routing-table
服务器配置
<h3c>system-view
[h3c]sysname server
[server]int g0/0
[server -GigabitEthernet0/0]ip add 192.168.3.250 255.255.255.0
[server -GigabitEthernet0/0]undosh
[server -GigabitEthernet0/0]quit
[server]ip route-static 0.0.0.0 0.0.0.0 192.168.3.1
[server]display ip routing-table
pc3配置
<h3c>system-view
[h3c]sysname pc3
[pc3]int g0/0
[pc3-GigabitEthernet0/0]ip add 202.1.1.2 55.255.255.0
[pc3-GigabitEthernet0/0]undosh
[pc3-GigabitEthernet0/0]quit
[pc3]ip route-static 0.0.0.0 0.0.0.0 202.1.1.1
[pc3]displayip routing-table
r1配置
<H3C>system-view
[H3C]sysname r1
[r1]int g0/0
[r1-GigabitEthernet0/0]ip add 202.202.202.2 255.255.255.252
[r1-GigabitEthernet0/0]undosh
[r1-GigabitEthernet0/0]int g0/1
[r1-GigabitEthernet0/1]ip add 200.200.200.2 255.255.255.252
[r1-GigabitEthernet0/1]undosh
将g0/2口改为桥接模式
[r1-GigabitEthernet0/1]int g0/2
[r1-GigabitEthernet0/2]port link-mode bridge
[r1-GigabitEthernet0/2]int vlan 1
[r1-Vlan-interface1]ip add 192.168.1.1 255.255.255.0
[r1-Vlan-interface1]undosh
r2配置
<H3C>system-view
System View: return to User View with Ctrl+Z.
[H3C]sysname r2
[r2]int g0/0
[r2-GigabitEthernet0/0]ip add 202.202.202.1 255.255.255.252
[r2-GigabitEthernet0/0]undosh
[r2-GigabitEthernet0/0]int g0/1
[r2-GigabitEthernet0/1]ip add 222.222.222.1 255.255.255.252
[r2-GigabitEthernet0/1]undosh
[r2-GigabitEthernet0/1]int loopback 0
[r2-LoopBack0]ip add 202.202.0.1 255.255.255.255
[r2-LoopBack0]
r3配置
<H3C>system-view
[H3C]sysname r3
[r3]int g0/1
[r3-GigabitEthernet0/1]ip add 200.200.200.1 255.255.255.252
[r3-GigabitEthernet0/1]undosh
[r3-GigabitEthernet0/1]int g0/0
[r3-GigabitEthernet0/0]ip add 222.222.222.2 255.255.255.252
[r3-GigabitEthernet0/0]undosh
[r3-GigabitEthernet0/0]
[r3-GigabitEthernet0/0]int g0/2
[r3-GigabitEthernet0/2] ip add 202.1.1.1 255.255.255.0
[r3-GigabitEthernet0/2]undosh
sw1配置
[H3C]sysname sw1
[sw1]int vlan 1
[sw1-Vlan-interface1]ip add 192.168.1.2 255.255.255.0
[sw1-Vlan-interface1]undosh
[sw1]vlan 2
[sw1-vlan2]vlan 3
[sw1-vlan3]int vlan 2
[sw1-Vlan-interface2]ip add 192.168.2.1 255.255.255.0
[sw1-Vlan-interface2]undosh
[sw1-Vlan-interface2]int vlan 3
[sw1-Vlan-interface3]ip add 192.168.3.1 255.255.255.0
[sw1-Vlan-interface3]undosh
[sw1]int g1/0/6
[sw1-GigabitEthernet1/0/6]port access vlan 2
[sw1-GigabitEthernet1/0/6]int g1/0/7
[sw1-GigabitEthernet1/0/7]port access vlan 3
[sw1-GigabitEthernet1/0/7]int g1/0/8
[sw1-GigabitEthernet1/0/8]port access vlan 3
二、路由配置
1.sw1配置默认路由
[sw1-GigabitEthernet1/0/8]ip route-static 0.0.0.0 0.0.0.0 192.168.1.1
2.r1上配置静态路由和ospf
<r1>system-view
[r1]ip route-static 192.168.2.0 255.255.255.0 192.168.1.2
[r1]ip route-static 192.168.3.0 255.255.255.0 192.168.1.2
[r1]ospf 1
[r1-ospf-1]area 0
[r2-ospf-1-area-0.0.0.0]net 0.0.0.0 255.255.255.255
3.r2上配置ospf
<r2>system-view
[r2]ospf 1
[r2-ospf-1]area 0
[r2-ospf-1-area-0.0.0.0]net 0.0.0.0 255.255.255.255
4.r3上配置ospf
<r2>system-view
[r3]ospf 1
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]net 0.0.0.0 255.255.255.255
说明：
三、nat配置
[r1]acl basic 2001
[r1-acl-ipv4-basic-2001]rule 0 permit source 192.168.2.0 0.0.0.255
[r1-acl-ipv4-basic-2001]rule 5 permit source 192.168.3.0 0.0.0.255
[r1-acl-ipv4-basic-2001]rule 10 deny
[r1-acl-ipv4-basic-2001]int g0/0
[r1-GigabitEthernet0/0]port link-mode route
[r1-GigabitEthernet0/0]descriptionlink_to_tel
[r1-GigabitEthernet0/0]nat outbound 2001
[r1-GigabitEthernet0/0]int g0/1
[r1-GigabitEthernet0/1]port link-mode route
[r1-GigabitEthernet0/1]desclink_to_end
[r1-GigabitEthernet0/1]nat outbound 2001
[r1-GigabitEthernet0/1]nat server protocol tcp global 200.200.200.2 23 inside 19
2.168.3.250 23
[r1-GigabitEthernet0/1]
验证：从pc1 ping 202.202.0.1
display nat session
四、策略路由配置
[r1]acl advanced 3001
[r1-acl-ipv4-adv-3001]rule 0 permit ip source 192.168.3.0 0.0.0.255
[r1-acl-ipv4-adv-3001]quit
[r1]policy-based-route a1 permit node 10
[r1-pbr-a1-10]if-match acl 3001
[r1-pbr-a1-10]apply next-hop 200.200.200.1
[r1-pbr-a1-10]quit
[r1]policy-based-route a1 permit node 20 //空节点，即不匹配acl3001的流量都放行，正常查路由表
[r1-pbr-a1-20]quit
在接口vlan上应用策略路由（此处使用的是基于接口的策略路由）
[r1]int Vlan-interface 1
[r1-Vlan-interface1]ip policy-based-route a1
[r1-Vlan-interface1]
五、验证
1.验证nat，在server上开启telnet
<server>system-view
[server]telnet server enable //默认开启
[server]local-user admin //创建用户admin
[server-luser-manage-admin]password simple benet //配置密码
[server-luser-manage-admin]service-type telnet //指定服务类型为telnet
[server-luser-manage-admin]authorization-attribute user-role level-3 //指定命令级别为3级
[server-luser-manage-admin]quit
[server]user-interface vty 0 //进入vty线路
[server-line-vty0]authentication-mode scheme //配置用户的认证方式
[server-line-vty0]protocol inbound telnet //支持telnet
[server-line-vty0]quit
在pc3上telnet服务器
<pc3>telnet 200.200.200.2
login: admin
Password:
<server>
<server>
