H3C RIP配置

发布时间：2019-07-10 13:37:25编辑：auto阅读（1495）

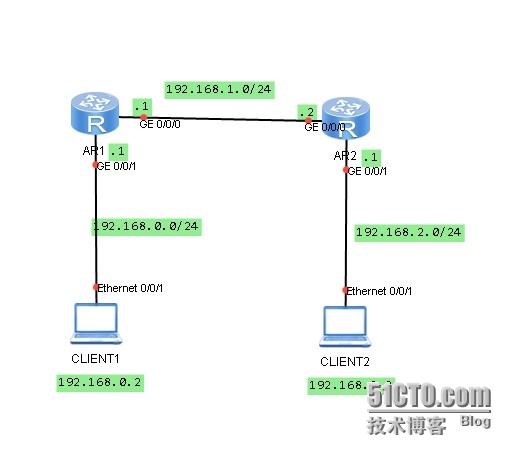

    AR1配置

    <H3C>system-view

    [H3C]sysname AR1

    [AR1]interface GigabitEthernet 0/0/0

    [AR1-GigabitEthernet0/0/0]ipaddress 192.168.1.1 24

    [AR1-GigabitEthernet0/0/0]qu

    [AR1]interface GigabitEthernet0/0/1

    [AR1-GigabitEthernet0/0/1]ip address 192.168.0.1 24

    [AR1-GigabitEthernet0/0/1]qu

    [AR1]dis brief interface

    [AR1]display ip routing-table 在AR1上查看，此时没有发现2.0网段

    [AR1]rip

    [AR1-rip-1]version 2 支持可变长掩码

    [AR1-rip-1]network192.168.0.0 宣告网段

    [AR1-rip-1]network 192.168.1.0

    [AR1-rip-1]qu

    AR2配置

    <H3C>system-view

    [H3C]sysname AR1

    [AR2]interface GigabitEthernet 0/0/0

    [AR2-GigabitEthernet0/0/0]ip address192.168.1.2 24

    [AR2-GigabitEthernet0/0/0]qu

    [AR2]interface GigabitEthernet 0/0/1

    [AR2-GigabitEthernet0/0/1]ip address 192.168.2.1 24

    [AR2-GigabitEthernet0/0/1]qu

    [AR2]dis brief interface

    [AR2]display ip routing-table AR2上查看，此时没有发现0.0网段

    [AR2]rip

    [AR2-rip-1]version 2

    [AR2-rip-1]network 192.168.1.0

    [AR2-rip-1]network 192.168.2.0

    [AR2-rip-1]qu

    [AR1]display ip routing-table 在AR1上查看，发现学到2.0网段

    [AR2]display ip routing-table 在AR1上查看，发现学到0.0网段
