GNS3实现VPLS实验

发布时间：2019-09-21 11:05:47编辑：auto阅读（2170）

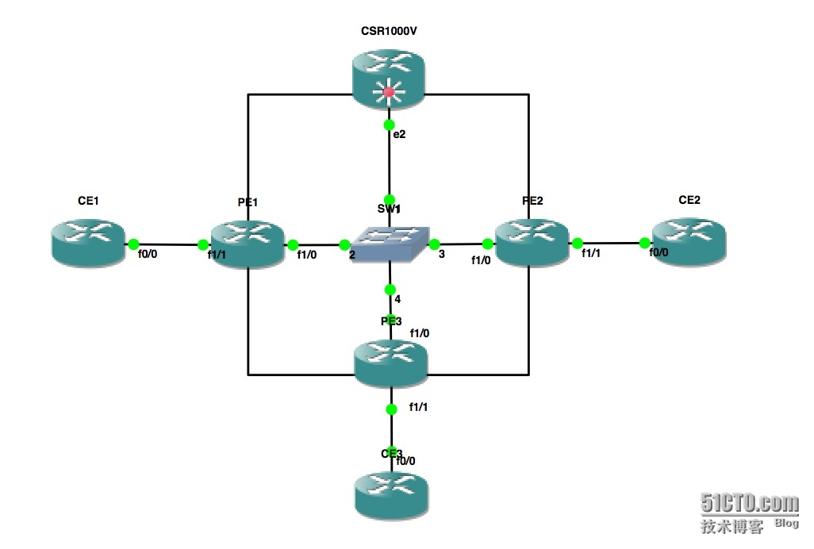

1. 拓扑




2. PE1配置

mpls ip mpls ldp router-id Loopback0 interface Loopback0  ip address 1.1.1.1 255.255.255.255 interface FastEthernet1/0  ip address 10.10.10.1 255.255.255.0  duplex auto  speed auto  mpls ip   interface FastEthernet1/1  no ip address  duplex full  speed 100  no keepalive  no cdp enable  xconnect 4.4.4.4 1001 encapsulation mpls router ospf 1  router-id 1.1.1.1  log-adjacency-changes  network 1.1.1.1 0.0.0.0 area 0  network 10.10.10.0 0.0.0.255 area 0

3. PE2配置

mpls ip mpls ldp router-id Loopback0 interface Loopback0  ip address 2.2.2.2 255.255.255.255 interface FastEthernet1/0  ip address 10.10.10.2 255.255.255.0  duplex auto  speed auto  mpls ip   interface FastEthernet1/1  no ip address  duplex full  speed 100  no keepalive  no cdp enable  xconnect 4.4.4.4 1001 encapsulation mpls router ospf 1  router-id 2.2.2.2  log-adjacency-changes  network 2.2.2.2 0.0.0.0 area 0  network 10.10.10.0 0.0.0.255 area 0

4. PE3配置

mpls ip mpls ldp router-id Loopback0 interface Loopback0  ip address 3.3.3.3 255.255.255.255 interface FastEthernet1/0  ip address 10.10.10.3 255.255.255.0  duplex auto  speed auto  mpls ip   interface FastEthernet1/1  no ip address  duplex full  speed 100  no keepalive  no cdp enable  xconnect 4.4.4.4 1001 encapsulation mpls router ospf 1  router-id 3.3.3.3  log-adjacency-changes  network 3.3.3.3 0.0.0.0 area 0  network 10.10.10.0 0.0.0.255 area 0

5. CSR1000v配置


license boot level premium   <先敲此命令后 reboot CSR1000v> mpls ip mpls ldp router-id Loopback0 interface Loopback0  ip address 4.4.4.4 255.255.255.255 interface FastEthernet1/0  ip address 10.10.10.4 255.255.255.0  duplex auto  speed auto  mpls ip router ospf 1  router-id 4.4.4.4  log-adjacency-changes  network 4.4.4.4 0.0.0.0 area 0  network 10.10.10.0 0.0.0.255 area 0 l2 vif VPLS manual  *** id 1001  bridge-domain 1001  neighbor 3.3.3.3 encapsulation mpls no-split-horizon  neighbor 2.2.2.2 encapsulation mpls no-split-horizon   neighbor 1.1.1.1 encapsulation mpls no-split-horizon

6. CE1配置

interface Loopback0  ip address 192.168.1.1 255.255.255.255 interface FastEthernet0/0  ip address 10.10.123.1 255.255.255.0  duplex auto  speed auto router eigrp 1  network 192.168.1.0  network 0.0.0.0  no auto-summary

7. CE2配置

interface Loopback0  ip address 192.168.1.2 255.255.255.255 interface FastEthernet0/0  ip address 10.10.123.2 255.255.255.0  duplex auto  speed auto router eigrp 1  network 192.168.1.0  network 0.0.0.0  no auto-summary

8. CE3配置


interface Loopback0  ip address 192.168.1.3 255.255.255.255 interface FastEthernet0/0  ip address 10.10.123.3 255.255.255.0  duplex auto  speed auto router eigrp 1  network 192.168.1.0  network 0.0.0.0  no auto-summary
