H3C的静态路由配置

发布时间：2019-09-16 07:33:19编辑：auto阅读（1624）

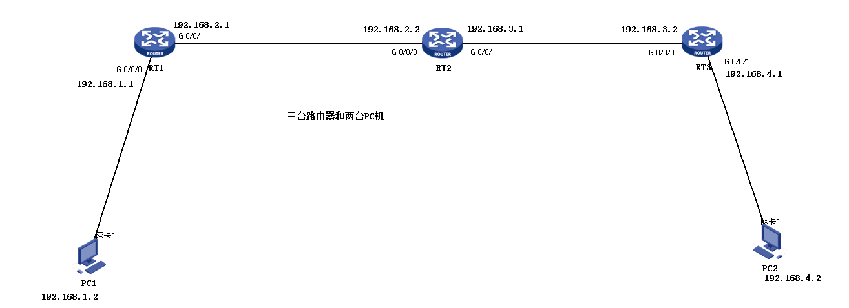

三台路由器和两台PC机


配置R1的路由

<RT1>


#Oct 11 20:08:28:820 2017 RT1 SHELL/4/LOGIN:

 Trap 1.3.6.1.4.1.25506.2.2.1.1.3.0.1<hh3cLogIn>: login from Console

%Oct 11 20:08:28:820 2017 RT1 SHELL/5/SHELL_LOGIN: Console logged in from con0.

<RT1>

<RT1>sys

<RT1>system-view

System View: return to User View with Ctrl+Z.

[RT1]int

[RT1]interface g

[RT1]interface GigabitEthernet 0/0/0

[RT1-GigabitEthernet0/0/0]ip add

[RT1-GigabitEthernet0/0/0]ip address 192.168.1.1 24

[RT1-GigabitEthernet0/0/0]int g0/0/1

[RT1-GigabitEthernet0/0/1]ip add

[RT1-GigabitEthernet0/0/1]ip address 192.168.2.1 24

[RT1-GigabitEthernet0/0/1]dis

[RT1-GigabitEthernet0/0/1]display ip int br

[RT1-GigabitEthernet0/0/1]display ip int brief

*down: administratively down

(s): spoofing

Interface                     Physical Protocol IP Address      Description

GigabitEthernet0/0/0          up       up       192.168.1.1     GigabitEt...

GigabitEthernet0/0/1          up       up       192.168.2.1     GigabitEt...

GigabitEthernet0/0/2          down     down     unassigned      GigabitEt...

GigabitEthernet0/0/3          down     down     unassigned      GigabitEt...

Serial0/1/0                   down     down     unassigned      Serial0/1...

Serial0/1/1                   down     down     unassigned      Serial0/1...

Serial0/1/2                   down     down     unassigned      Serial0/1...

Serial0/1/3                   down     down     unassigned      Serial0/1...




[RT1-GigabitEthernet0/0/1]display ip routing-table

Routing Tables: Public

        Destinations : 6        Routes : 6




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.1.0/24      Direct 0    0            192.168.1.1     GE0/0/0

192.168.1.1/32      Direct 0    0            127.0.0.1       InLoop0

192.168.2.0/24      Direct 0    0            192.168.2.1     GE0/0/1

192.168.2.1/32      Direct 0    0            127.0.0.1       InLoop0




[RT1-GigabitEthernet0/0/1]

[RT1-GigabitEthernet0/0/1]quit

[RT1]ip route

[RT1]ip route-

[RT1]ip route-static 192.168.3.0 24 192.168.2.2

[RT1]ip route

[RT1]ip route-s

[RT1]ip route-static 192.168.4.0 24 192.168.3.2

[RT1]dis

[RT1]display ip route

[RT1]display ip routes

[RT1]display ip route-

[RT1]display ip route-

[RT1]display ip route-s

[RT1]display ip route-t

[RT1]display ip rout

[RT1]display ip routing-table

Routing Tables: Public

        Destinations : 8        Routes : 8




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.1.0/24      Direct 0    0            192.168.1.1     GE0/0/0

192.168.1.1/32      Direct 0    0            127.0.0.1       InLoop0

192.168.2.0/24      Direct 0    0            192.168.2.1     GE0/0/1

192.168.2.1/32      Direct 0    0            127.0.0.1       InLoop0

192.168.3.0/24      Static 60   0            192.168.2.2     GE0/0/1

192.168.4.0/24      Static 60   0            192.168.3.2     GE0/0/1

配置R2的路由

<RT2>

#Oct 11 20:18:52:357 2017 RT2 SHELL/4/LOGIN:

 Trap 1.3.6.1.4.1.25506.2.2.1.1.3.0.1<hh3cLogIn>: login from Console

%Oct 11 20:18:52:357 2017 RT2 SHELL/5/SHELL_LOGIN: Console logged in from con0.

<RT2>sys

<RT2>system-view

System View: return to User View with Ctrl+Z.

[RT2]int

[RT2]interface g

[RT2]interface GigabitEthernet 0/0/0

[RT2-GigabitEthernet0/0/0]ip add

[RT2-GigabitEthernet0/0/0]ip address 192.168.2.2 24

[RT2-GigabitEthernet0/0/0]undo sh

 Interface GigabitEthernet0/0/0 is not shut down

[RT2-GigabitEthernet0/0/0]int

[RT2-GigabitEthernet0/0/0]int g

[RT2-GigabitEthernet0/0/0]int g0/0/1

[RT2-GigabitEthernet0/0/1]ip add

[RT2-GigabitEthernet0/0/1]ip address 192.168.3.1 24

[RT2-GigabitEthernet0/0/1]undo sh

 Interface GigabitEthernet0/0/1 is not shut down

[RT2-GigabitEthernet0/0/1]dis

[RT2-GigabitEthernet0/0/1]display ip int br

[RT2-GigabitEthernet0/0/1]display ip int brief

*down: administratively down

(s): spoofing

Interface                     Physical Protocol IP Address      Description

GigabitEthernet0/0/0          up       up       192.168.2.2     GigabitEt...

GigabitEthernet0/0/1          up       up       192.168.3.1     GigabitEt...

GigabitEthernet0/0/2          down     down     unassigned      GigabitEt...

GigabitEthernet0/0/3          down     down     unassigned      GigabitEt...

Serial0/1/0                   down     down     unassigned      Serial0/1...

Serial0/1/1                   down     down     unassigned      Serial0/1...

Serial0/1/2                   down     down     unassigned      Serial0/1...

Serial0/1/3                   down     down     unassigned      Serial0/1...

[RT2-GigabitEthernet0/0/1]dis

[RT2-GigabitEthernet0/0/1]display ip route

[RT2-GigabitEthernet0/0/1]display ip rout

[RT2-GigabitEthernet0/0/1]display ip routing-table

Routing Tables: Public

        Destinations : 6        Routes : 6




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.2.0/24      Direct 0    0            192.168.2.2     GE0/0/0

192.168.2.2/32      Direct 0    0            127.0.0.1       InLoop0

192.168.3.0/24      Direct 0    0            192.168.3.1     GE0/0/1

192.168.3.1/32      Direct 0    0            127.0.0.1       InLoop0




[RT2-GigabitEthernet0/0/1]

[RT2-GigabitEthernet0/0/1]quit

[RT2]ip rout

[RT2]ip route-s

[RT2]ip route-static 192.168.1.0 24 192.168.2.1

[RT2]ip route

[RT2]ip route-s

[RT2]ip route-static 192.168.4.0 24 192.168.3.2

[RT2]dis

[RT2]display ip

[RT2]display ip r

[RT2]display ip routing-table

Routing Tables: Public

        Destinations : 8        Routes : 8




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.1.0/24      Static 60   0            192.168.2.1     GE0/0/0

192.168.2.0/24      Direct 0    0            192.168.2.2     GE0/0/0

192.168.2.2/32      Direct 0    0            127.0.0.1       InLoop0

192.168.3.0/24      Direct 0    0            192.168.3.1     GE0/0/1

192.168.3.1/32      Direct 0    0            127.0.0.1       InLoop0

192.168.4.0/24      Static 60   0            192.168.3.2     GE0/0/1

配置R3的路由

<RT3>

<RT3>sys

<RT3>system-view

System View: return to User View with Ctrl+Z.

[RT3]int

[RT3]interface g

[RT3]interface GigabitEthernet 0/0/0

[RT3-GigabitEthernet0/0/0]ip add

[RT3-GigabitEthernet0/0/0]ip address 192.168.3.2 24

[RT3-GigabitEthernet0/0/0]int

[RT3-GigabitEthernet0/0/0]int g0/0/1

[RT3-GigabitEthernet0/0/1]ip add

[RT3-GigabitEthernet0/0/1]ip address 192.168.4.1 24

[RT3-GigabitEthernet0/0/1]undo sh

 Interface GigabitEthernet0/0/1 is not shut down

[RT3-GigabitEthernet0/0/1]dis

[RT3-GigabitEthernet0/0/1]display ip route

[RT3-GigabitEthernet0/0/1]display ip int br

[RT3-GigabitEthernet0/0/1]display ip int brief

*down: administratively down

(s): spoofing

Interface                     Physical Protocol IP Address      Description

GigabitEthernet0/0/0          up       up       192.168.3.2     GigabitEt...

GigabitEthernet0/0/1          up       up       192.168.4.1     GigabitEt...

GigabitEthernet0/0/2          down     down     unassigned      GigabitEt...

GigabitEthernet0/0/3          down     down     unassigned      GigabitEt...

Serial0/1/0                   down     down     unassigned      Serial0/1...

Serial0/1/1                   down     down     unassigned      Serial0/1...

Serial0/1/2                   down     down     unassigned      Serial0/1...

Serial0/1/3                   down     down     unassigned      Serial0/1...

[RT3-GigabitEthernet0/0/1]dis

[RT3-GigabitEthernet0/0/1]display ip route

[RT3-GigabitEthernet0/0/1]display ip rout

[RT3-GigabitEthernet0/0/1]display ip routing-table

Routing Tables: Public

        Destinations : 6        Routes : 6




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.3.0/24      Direct 0    0            192.168.3.2     GE0/0/0

192.168.3.2/32      Direct 0    0            127.0.0.1       InLoop0

192.168.4.0/24      Direct 0    0            192.168.4.1     GE0/0/1

192.168.4.1/32      Direct 0    0            127.0.0.1       InLoop0

[RT3-GigabitEthernet0/0/1]quit

[RT3]ip route

[RT3]ip route-s

[RT3]ip route-static 192.168.2.0 24 192.168.3.1

[RT3]ip route

[RT3]ip route-s

[RT3]ip route-static 192.168.1.0 24 192.168.2.1

[RT3]dis

[RT3]display ip rout

[RT3]display ip routing-table

Routing Tables: Public

        Destinations : 8        Routes : 8




Destination/Mask    Proto  Pre  Cost         NextHop         Interface




127.0.0.0/8         Direct 0    0            127.0.0.1       InLoop0

127.0.0.1/32        Direct 0    0            127.0.0.1       InLoop0

192.168.1.0/24      Static 60   0            192.168.2.1     GE0/0/0

192.168.2.0/24      Static 60   0            192.168.3.1     GE0/0/0

192.168.3.0/24      Direct 0    0            192.168.3.2     GE0/0/0

192.168.3.2/32      Direct 0    0            127.0.0.1       InLoop0

192.168.4.0/24      Direct 0    0            192.168.4.1     GE0/0/1

192.168.4.1/32      Direct 0    0            127.0.0.1       InLoop0

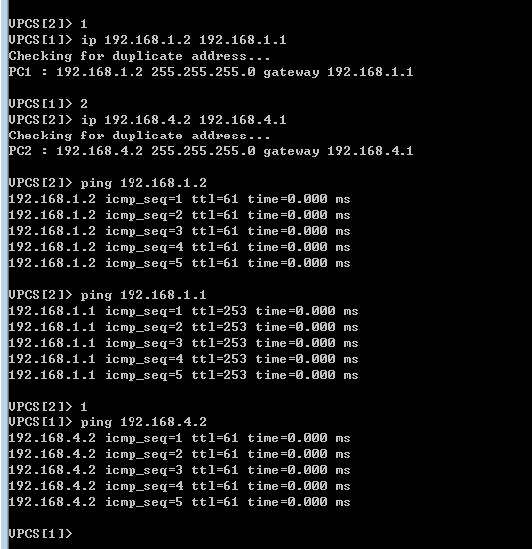

测试两台PC机的连通
