H3C ospf配置

发布时间：2019-09-15 09:58:35编辑：auto阅读（1999）

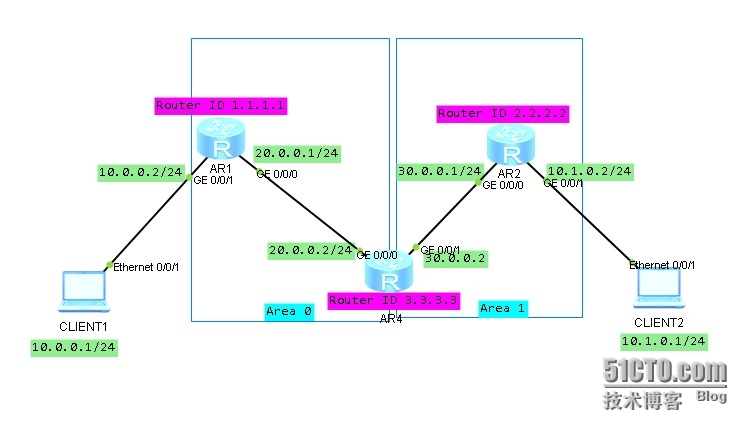

AR1配置

<H3C>system-view

[H3C]sysname AR1

[AR1]interface GigabitEthernet 0/0/1

[AR1-GigabitEthernet0/0/1]ip adderss10.0.0.2 24

[AR1-GigabitEthernet0/0/1]qu

[AR1]interface GigabitEthernet0/0/1

[AR1-GigabitEthernet0/0/0]ipaddress 20.0.0.1 24

[AR1-GigabitEthernet0/0/1]qu

[AR1]router id 1.1.1.1

[AR1]ospf

[AR1-ospf-1]area 0

[AR1-ospf-1-area-0.0.0.0]network1.1.1.1 0.0.0.0

[AR1-ospf-1-area-0.0.0.0]network10.0.0.0 0.0.0.255

[AR1-ospf-1-area-0.0.0.0]network20.0.0.0 0.0.0.255

[AR1]dis ip routing-table 查看路由表

Route Flags: R - relay, D - download to fib

------------------------------------------------------------------------------

Routing Tables: Public

Destinations : 12 Routes :12




Destination/Mask Proto Pre Cost Flags NextHop Interface




10.0.0.0/24 Direct 0 0 D 10.0.0.2 GigabitEthernet0/0/1

10.0.0.2/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/0/1

10.0.0.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/0/1

10.1.0.0/24 OSPF 10 3 D 20.0.0.2 GigabitEthernet0/0/0

20.0.0.0/24 Direct 0 0 D 20.0.0.1 GigabitEthernet0/0/0

20.0.0.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/0/0

20.0.0.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/0/0

30.0.0.0/24 OSPF 10 2 D 20.0.0.2 GigabitEthernet0/0/0




AR4配置

<H3C>system-view

[H3C]sysname AR4

[AR4]interface GigabitEthernet 0/0/0

[AR4-GigabitEthernet0/0/0]ip address20.0.0.2 24

[AR4-GigabitEthernet0/0/0]qu

[AR4]interface GigabitEthernet 0/0/1

[AR4-GigabitEthernet0/0/1]ip address 30.0.0.224

[AR4-GigabitEthernet0/0/1]qu

[AR4]router id 3.3.3.3

[AR4]ospf

[AR4-ospf-1]area 0

[AR4-ospf-1-area-0.0.0.0]network20.0.0.0 0.0.0.255

[AR4-ospf-1-area-0.0.0.0]area1

[AR4-ospf-1-area-0.0.0.1]network 30.0.0.00.0.0.255

AR2配置

<H3C>system-view

[H3C]sysname AR2

[AR2]interface GigabitEthernet 0/0/0

[AR2-GigabitEthernet0/0/0]ip address 30.0.0.124

[AR2-GigabitEthernet0/0/0]qu

[AR2]interface GigabitEthernet 0/0/1

[AR2-GigabitEthernet0/0/1]ip address10.1.0.2 24

[AR2-GigabitEthernet0/0/1]qu

[AR2]router id 2.2.2.2

[AR2]ospf

[AR2-ospf-1]area 1

[AR2-ospf-1-area-0.0.0.1]network30.0.0.0 0.0.0.255

[AR2-ospf-1-area-0.0.0.1]network 30.0.0.00.0.0.255
