SpringMVC+Hibernate4

发布时间：2019-09-13 09:31:32编辑：auto阅读（1529）

• 开发环境

  1，项目用到的框架有：Spring3.2.14.RELEASE、Hibernate4.2.20.Final、Bootstrap3


  2，开发工具eclipse、maven

  3，数据库Mysql5.6.24

• 正文

1.数据库表

CREATE TABLE `user` (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `USER_NAME` varchar(100) DEFAULT NULL,
  `PASSWD` varchar(100) DEFAULT NULL,
  `STATE` tinyint(4) DEFAULT NULL,
  `CREATE_TIME` date DEFAULT NULL,
  `UPDATE_TIME` date DEFAULT NULL,
  `DECRIBE` varchar(200) DEFAULT NULL,
  PRIMARY KEY (`ID`)
)

2.配置文件

 1) web.xml

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app>
	<display-name>Archetype Created Web Application</display-name>
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>

	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>

	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<servlet>
		<servlet-name>dispatcherServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:SpringMVC.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>dispatcherServlet</servlet-name>
		<url-pattern>*.htm</url-pattern>
	</servlet-mapping>

	<welcome-file-list>
		<welcome-file>view/user/index.jsp</welcome-file>
	</welcome-file-list>
</web-app>

 2) db_info.properties

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/zws001
jdbc.username=root
jdbc.password=root

 3) log4j.properties

log4j.rootCategory = info,stdout

log4j.appender.stdout = org.apache.log4j.ConsoleAppender\t\t
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern = %d{yyyy-MM-dd HH\:mm\:ss}|%p|%C|%M|%L|%m%n

 4) applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
						http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
			    		http://www.springframework.org/schema/aop
						http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
						http://www.springframework.org/schema/tx
						http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
						http://www.springframework.org/schema/context
				   		http://www.springframework.org/schema/context/spring-context-3.0.xsd">
	<context:property-placeholder location="classpath:db_info.properties"/>
	<!-- 只扫描被@Service @Repository注解标记的类 -->
	<context:component-scan base-package="com.zws" use-default-filters="false">
	  	<context:include-filter type="annotation" expression="org.springframework.stereotype.Repository" />
	    <context:include-filter type="annotation" expression="org.springframework.stereotype.Service" />
	</context:component-scan>
	<!-- 激活spring事务注解，即@Transactional注解 -->
	<tx:annotation-driven transaction-manager="transactionManager" />

	<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
		<property name="driverClass" value="${jdbc.driverClassName}"></property>
		<property name="jdbcUrl" value="${jdbc.url}"></property>
		<property name="user" value="${jdbc.username}"></property>
		<property name="password" value="${jdbc.password}"></property>
		<property name="checkoutTimeout" value="5000"></property>
		<property name="acquireIncrement" value="3"></property>
		<property name="maxIdleTime" value="60"></property>
		<property name="maxPoolSize" value="15"></property>
	</bean>
	<bean id="sessionFactory" class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
	    <property name="dataSource" ref="dataSource"></property>
		<property name="hibernateProperties">
			<props>
                <prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
                <prop key="hibernate.show_sql">true</prop>
                <prop key="hibernate.format_sql">true</prop>
                <prop key="hibernate.hbm2ddl.auto">update</prop>
			</props>
		</property>
		<property name="packagesToScan">
			<list>
				<value>com.zws.user.beans</value>
			</list>
		</property>
	</bean>

	<bean id="transactionManager" class="org.springframework.orm.hibernate4.HibernateTransactionManager">
		<property name="sessionFactory" ref="sessionFactory" />
	</bean>
</beans>

 5) SpringMVC.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
						http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
			    		http://www.springframework.org/schema/aop
						http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
						http://www.springframework.org/schema/context
				   		http://www.springframework.org/schema/context/spring-context-3.0.xsd">
	<!-- 只扫描被@Controller注解标记的类，子容器一定不要扫描有事务控制的Service层，否则会出现一个很蛋疼的org.hibernate.HibernateException: No Session found for current thread异常，切记切记啊！！！-->
	<context:component-scan base-package="com.zws" use-default-filters="false">
	  	<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
	</context:component-scan>
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
	    <property name="prefix" value="/view/"></property>
	    <property name="suffix" value=".jsp"></property>
	</bean>
</beans>

3.实体Bean

package com.zws.user.beans;

import java.util.Date;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

@Entity
@Table(name="USER")
public class User {

	@Id
	@Column(name="ID")
	@GeneratedValue(strategy = GenerationType.AUTO)
	private Long id;

	@Column(name="USER_NAME")
	private String userName;

	@Column(name="PASSWD")
	private String passwd;

	@Column(name="STATE")
	private Integer state;

	@Column(name="CREATE_TIME")
	private Date createTime;

	@Column(name="UPDATE_TIME")
	private Date updateTime;

	@Column(name="DECRIBE")
	private String describe;

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public String getUserName() {
		return userName;
	}

	public void setUserName(String userName) {
		this.userName = userName;
	}

	public String getPasswd() {
		return passwd;
	}

	public void setPasswd(String passwd) {
		this.passwd = passwd;
	}

	public Integer getState() {
		return state;
	}

	public void setState(Integer state) {
		this.state = state;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getUpdateTime() {
		return updateTime;
	}

	public void setUpdateTime(Date updateTime) {
		this.updateTime = updateTime;
	}

	public String getDescribe() {
		return describe;
	}

	public void setDescribe(String describe) {
		this.describe = describe;
	}

	@Override
	public String toString() {
		return "User [id=" + id + ", userName=" + userName + ", passwd="
				+ passwd + ", state=" + state + ", createTime=" + createTime
				+ ", updateTime=" + updateTime + ", describe=" + describe + "]";
	}
}

4.持久层

 1) BaseDao.java

package com.zws.user.dao;

import java.math.BigInteger;
import java.util.List;

import org.hibernate.SQLQuery;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.criterion.Restrictions;
import org.springframework.beans.factory.annotation.Autowired;

import com.zws.user.beans.User;

public class BaseDao<T> {
	@Autowired
	private SessionFactory sessionFactory;

	public void save(T entity) {
		getSession().save(entity);
	}

	public Session getSession() {
		return sessionFactory.getCurrentSession();
	}

	@SuppressWarnings("unchecked")
	public List<T> queryList(String hql) {
		return getSession().createQuery(hql).list();
	}

	@SuppressWarnings("unchecked")
	public List<T> querySQList(String sql, Class<T> clz) {
		return getSession().createSQLQuery(sql).addEntity(clz).list();
	}

	@SuppressWarnings("unchecked")
	public List<T> querySQList(String sql,Class<T> clz, String... vals) {
		SQLQuery query = getSession().createSQLQuery(sql).addEntity(clz);
		if (vals != null && vals.length > 0)
			for (int i = 0; i < vals.length; i++) {
				query.setParameter(i, vals[i]);
			}
		return query.list();
	}

	public Integer getCount(String sql) {
		return ((BigInteger) getSession().createSQLQuery(sql).uniqueResult()).intValue();
	}

	public void self() {
		getSession().createCriteria(User.class).add(Restrictions.eq("userName", ""));
	}

}

 2) UserDao.java

package com.zws.user.dao;

import java.util.List;

import com.zws.user.beans.User;

public interface UserDao {

	void save(User user);

	List<User> queryUsers(User user);

	Integer querySize(User user);
}

 3) UserDaoImpl.java

package com.zws.user.dao.impl;

import java.util.List;

import org.springframework.stereotype.Repository;

import com.zws.user.beans.User;
import com.zws.user.dao.BaseDao;
import com.zws.user.dao.UserDao;
@Repository
public class UserDaoImpl extends BaseDao<User> implements UserDao {

	public void save(User user) {
		super.save(user);
	}

	public List<User> queryUsers(User user) {
		String hql = "FROM User WHERE state = " + user.getState();
		return queryList(hql);
	}

	public Integer querySize(User user) {
		String sql = "SELECT COUNT(*) FROM USER WHERE STATE = " + user.getState();
		return getCount(sql);
	}

}

5.服务层

 1) UserService.java

package com.zws.user.service;

import java.util.List;

import com.zws.user.beans.User;

public interface UserService {

	void save(User user);

	List<User> queryUsers(User user);

	Integer querySize(User user);
}

 2) UserServiceImpl.java

package com.zws.user.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import com.zws.user.beans.User;
import com.zws.user.dao.UserDao;
import com.zws.user.service.UserService;
@Service
@Transactional
public class UserServiceImpl implements UserService{
	@Autowired
	@Qualifier("userDaoImpl")
	private UserDao userDao;

	public void save(User user) {
		userDao.save(user);
	}
	public List<User> queryUsers(User user) {
		return userDao.queryUsers(user);
	}

	public Integer querySize(User user) {
		return userDao.querySize(user);
	}

}

6.视图控制层

 1) UserController.java

package com.zws.user.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import com.zws.user.beans.User;
import com.zws.user.service.UserService;

@Controller
@RequestMapping("/user")
public class UserController {

	@Autowired
	@Qualifier("userServiceImpl")
	private UserService service;

	@RequestMapping(value="/login.htm")
	public ModelAndView login(User user) {
		System.out.println(user);
		user.setState(1);
		List<User> users = service.queryUsers(user);
		ModelAndView view = new ModelAndView("user/jsp/home");
		view.addObject("users", users);
		return view;
	}
}

7.视图

 1) /SpringMVCHibernate4/src/main/webapp/view/index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html lang="zh-cn">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<link rel="stylesheet" href="<%=request.getContextPath()%>/css/bootstrap.min.css">
<script type="text/javascript" src="<%=request.getContextPath()%>/scripts/jquery-1.11.3.min.js"></script>
<script type="text/javascript" src="<%=request.getContextPath()%>/scripts/bootstrap.min.js"></script>
<title>login please</title>
<script type="text/javascript">

</script>
</head>
<body>
	<div class="container">
		<div class="row col-md-4 col-md-offset-4 jumbotron">

			<form action="<c:url value="/user/login.htm" />" method="post">
				<div class="form-group">
					<label for="exampleInputEmail1">Email address</label>
					<input name="userName" type="text" class="form-control"
						id="exampleInputEmail1" placeholder="Email">
				</div>
				<div class="form-group">
					<label for="exampleInputPassword1">Password</label>
					<input name="passwd" type="password" class="form-control"
							id="exampleInputPassword1" placeholder="Password">
				</div>
				<button type="submit" class="btn btn-lg btn-primary">Login</button>
			</form>
		</div>
	</div>

</body>
</html>

 2)  /SpringMVCHibernate4/src/main/webapp/view/user/jsp/home.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ page isELIgnored="false" %>
<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html lang="zh-cn">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<link rel="stylesheet" href="<%=request.getContextPath()%>/css/bootstrap.min.css">
<script type="text/javascript" src="<%=request.getContextPath()%>/scripts/jquery-1.11.3.min.js"></script>
<script type="text/javascript" src="<%=request.getContextPath()%>/scripts/bootstrap.min.js"></script>
<title>login please</title>
<script type="text/javascript">

</script>
</head>
<body>
	<div class="container " style="margin-top: 20px;">
    	<div class="row col-md-8 col-md-offset-2 jumbotron">
    		<table class="table table-bordered table-hover">
    			 <thead>
				    <tr>
				      <th>用户名</th>
				      <th>密码</th>
				      <th>状态</th>
				    </tr>
				  </thead>
				  <tbody>
		    		<c:forEach items="${users }" var="user">
		    			<tr>
		    				<td>${user.userName }</td>
		    				<td>${user.passwd }</td>
		    				<td>${user.state }</td>
		    			</tr>
		    		</c:forEach>
	    		</tbody>
    		</table>
    	</div>
 	</div>
</body>
</html>

8. pom.mxl

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.zws</groupId>
	<artifactId>SpringMVCHibernate4</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>spriHibnt Maven Webapp</name>
	<url>http://maven.apache.org</url>
	<properties>
    	<spring-version>3.2.14.RELEASE</spring-version>
    	<hibernate-version>4.2.20.Final</hibernate-version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.5</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>3.0.1</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.17</version>
		</dependency>

		<dependency>
			<groupId>cglib</groupId>
			<artifactId>cglib</artifactId>
			<version>2.2.2</version>
		</dependency>
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>1.7.4</version>
		</dependency>

		<dependency>
			<groupId>aspectj</groupId>
			<artifactId>aspectjweaver</artifactId>
			<version>1.5.4</version>
		</dependency>

		<!-- spring begin -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-beans</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>${spring-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>${spring-version}</version>
		</dependency>
		<!-- spring end -->

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.36</version>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
		<!-- hibernate 4.2 -->
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-c3p0</artifactId>
			<version>${hibernate-version}</version>
		</dependency>
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-core</artifactId>
			<version>${hibernate-version}</version>
		</dependency>
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-validator</artifactId>
			<version>4.2.0.Final</version>
		</dependency>
		<!-- EL表达式支持 -->
		<dependency>
			<groupId>javax.el</groupId>
			<artifactId>el-api</artifactId>
			<version>2.2</version>
		</dependency>
	</dependencies>
	<build>
		<finalName>SpringMVCHibernate4</finalName>
	</build>
</project>

9. 项目目录结构及效果截图

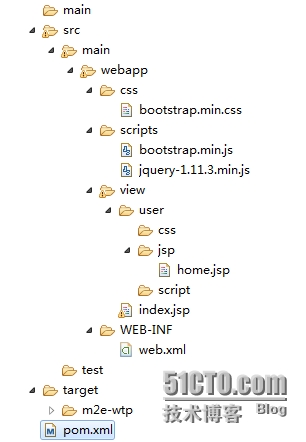

 1） 项目目录结构截图

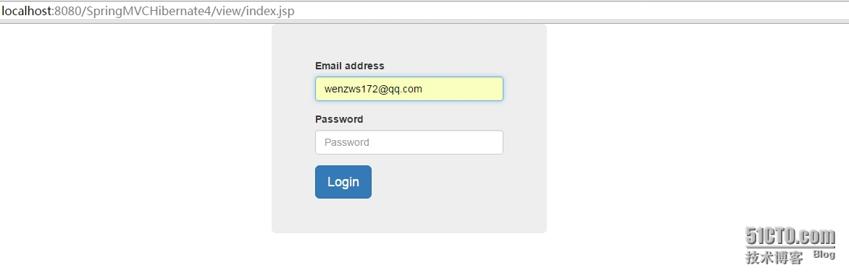

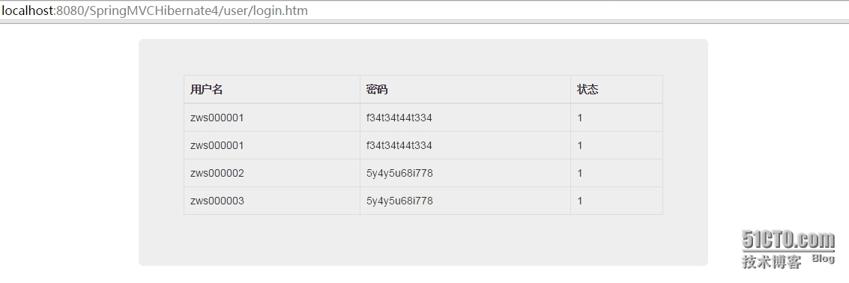

2）效果截图

关键字：
