H3C设备之ARP代理

发布时间：2019-09-02 07:42:39编辑：auto阅读（4098）

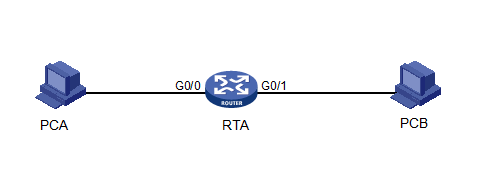

    PCA:172.16.0.2 255.255.0.0

    PCB:172.16.1.2 255.255.0.0

    RTA:G0/0:172.16.0.1 255.255.255.0

            G0/1:172.16.1.1 255.255.255.0

    利用ARP代理使两个子网互访；

    [RTA]interface G0/0

             ip address 172.16.0.1 24

             proxy-arp enable                         开启ARP代理功能

             interface G0/1

             proxy-arp enable

    此时RTA的ARP表上有两边PC的IP和MAC地址信息。

    [H3C]disp arp all
                    Type: S-Static    D-Dynamic    A-Authorized
    IP Address       MAC Address     VLAN ID  Interface              Aging Type
    172.16.1.2       00e0-0400-1100  N/A      Eth0/0/0               12    D
    172.16.0.2       000c-29b7-2033  N/A      Eth0/1/0               12    D

    此时PCA和PCB可以通过ARP代理广播相互访问：

    C:\Documents and Settings\xiaofei>ping 172.16.1.2

    Pinging 172.16.1.2 with 32 bytes of data:

    Reply from 172.16.1.2: bytes=32 time<1ms TTL=254
    Reply from 172.16.1.2: bytes=32 time=1ms TTL=254
    Reply from 172.16.1.2: bytes=32 time=1ms TTL=254
    Reply from 172.16.1.2: bytes=32 time<1ms TTL=254

    Ping statistics for 172.16.1.2:
        Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
    Approximate round trip times in milli-seconds:
        Minimum = 0ms, Maximum = 1ms, Average = 0ms

    C:\Documents and Settings\xiaofei>



    <H3C>ping -a 172.16.1.2 172.16.0.2
      PING 172.16.0.2: 56  data bytes, press CTRL_C to break
        Request time out
        Reply from 172.16.0.2: bytes=56 Sequence=2 ttl=127 time=1 ms
        Reply from 172.16.0.2: bytes=56 Sequence=3 ttl=127 time=1 ms
        Reply from 172.16.0.2: bytes=56 Sequence=4 ttl=127 time=1 ms
        Reply from 172.16.0.2: bytes=56 Sequence=5 ttl=127 time=1 ms

      --- 172.16.0.2 ping statistics ---
        5 packet(s) transmitted
        4 packet(s) received
        20.00% packet loss
        round-trip min/avg/max = 1/1/1 ms

    <H3C>
